MetroBikeAtlas: Metro & Shared-Bike Urban Mobility Analytics
A Metro x YouBike x city-factors dashboard built on TDX open data
An end-to-end data engineering and analytics project centered on Taiwan's metro and YouBike open data. It uses a Bronze/Silver/Gold data lake, integrates TDX, Open-Meteo and OpenStreetMap, performs temporal alignment and metro-to-bike spatial joins, runs correlation and clustering analysis, and surfaces decision evidence through a FastAPI backend and an interactive map dashboard.

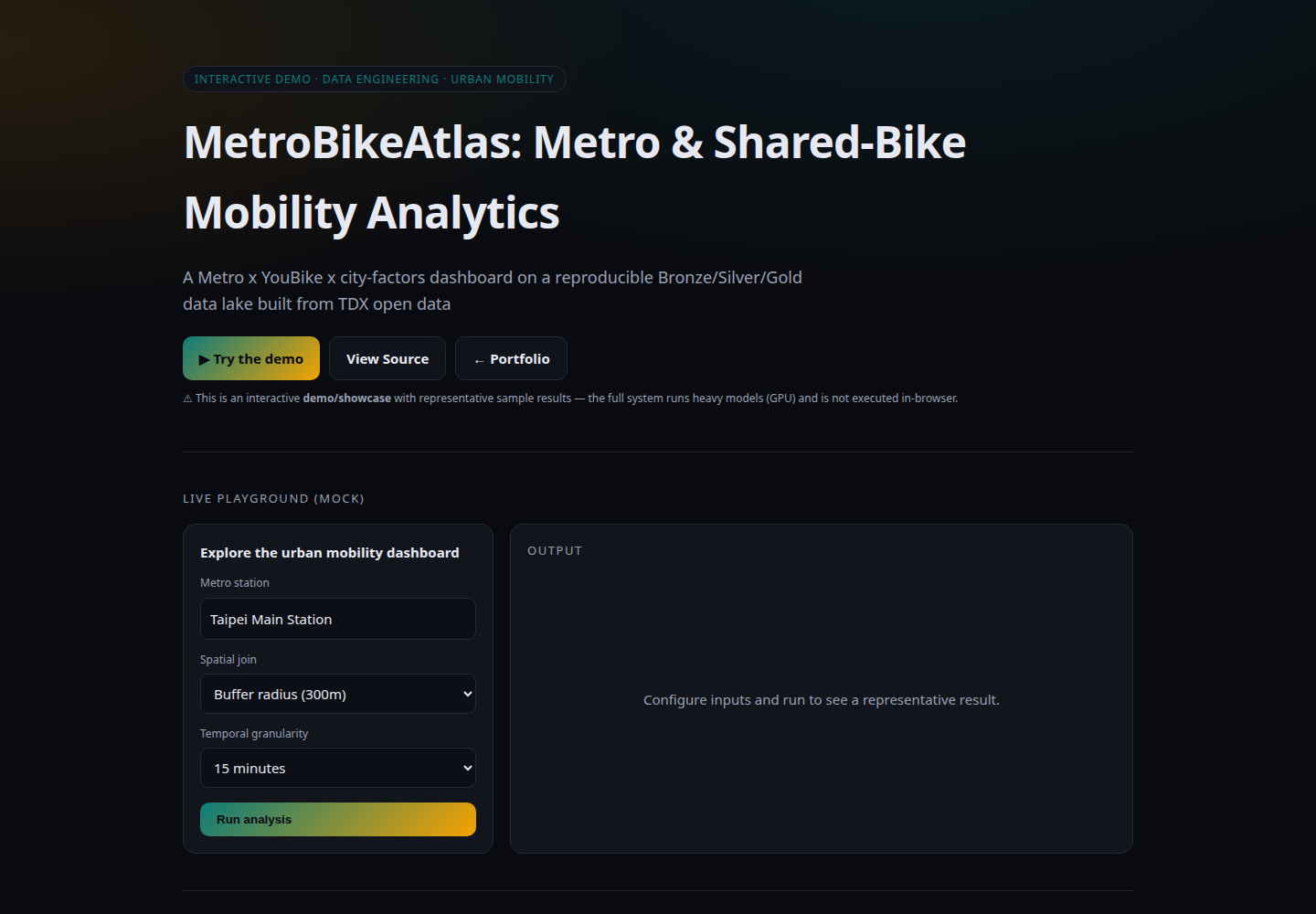

Verified Demo Recording 1
Copied by the portfolio quality pass from existing project demo media.
Media overview
Browse the project screenshots and recorded walkthroughs.
Project links and demo readiness
live
Live Demo
Open the verified live demo when available, or use the internal run guide for manual demo preparation.
github
View GitHub
Open the public repository when available, or review the source-access status captured by this case study.
video
Demo Recording
Open the demo recording when available, or use this section as the recording checklist for the project.
documentation
Read README
Open the project README when available, or use this case study as the documentation baseline.
Project overview

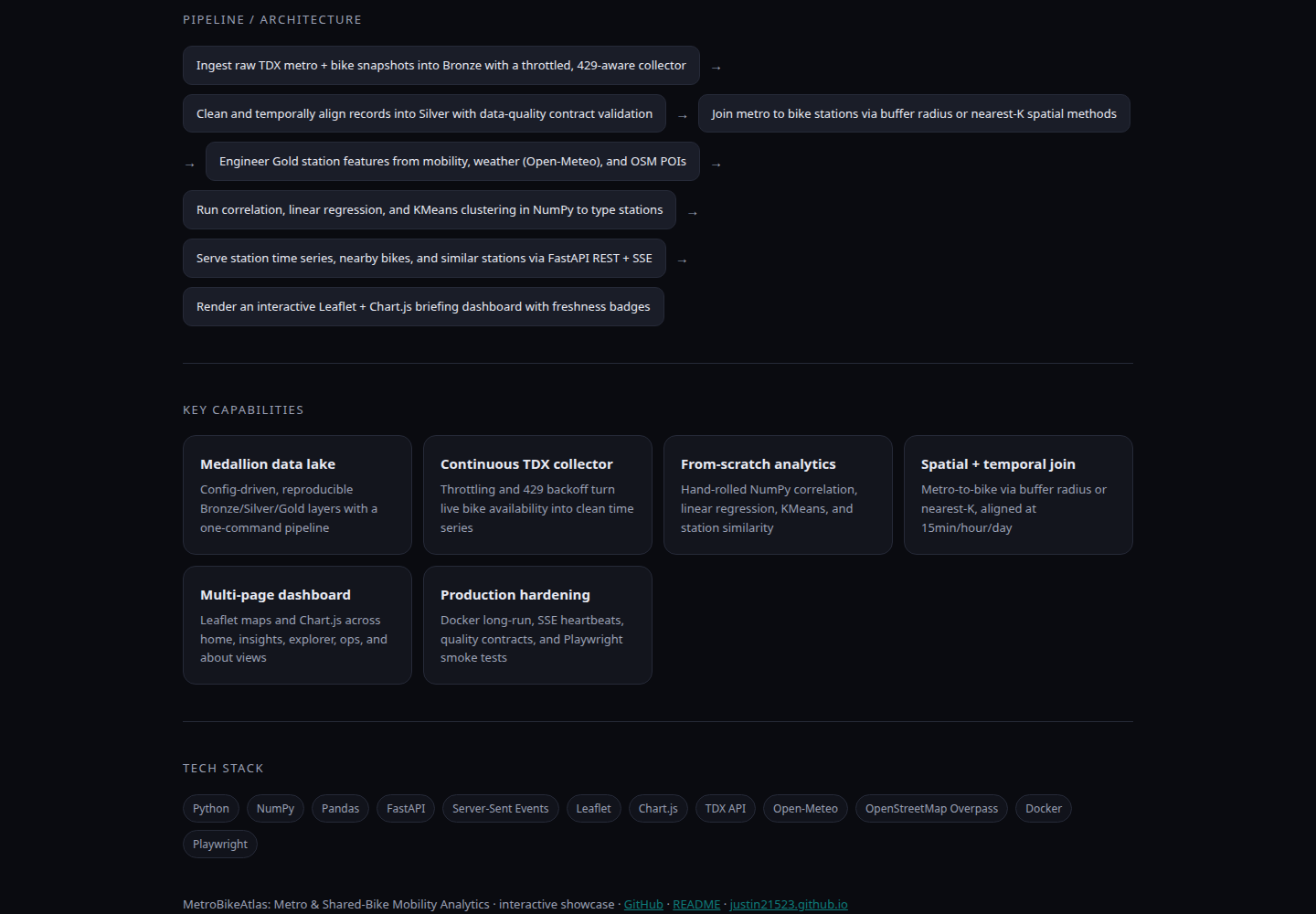

## Overview MetroBikeAtlas is an urban mobility analytics project built on Taiwan's metro (MRT/rail) and YouBike shared-bike open data, combining a data engineering pipeline with an interactive web dashboard. It studies how urban structure, accessibility, POI density, and time-of-day behavior influence metro flows and bike usage, making it suitable for smart-city research, urban planning, and transport policy evaluation. ## Architecture and Data Flow The project uses a Bronze/Silver/Gold medallion data lake: Bronze stores raw TDX snapshots, Silver performs cleaning and temporal alignment, and Gold produces station-level features and analytics. Sources integrate Taiwan's TDX platform, Open-Meteo weather, and OpenStreetMap Overpass POIs. A continuous collector with built-in throttling and 429 backoff repeatedly pulls live bike availability to build time series, and can periodically rebuild Silver. ## Analytics Methods The analytics layer deliberately implements correlation, linear regression, KMeans clustering, and station similarity from scratch in NumPy, classifying metro stations into functional types based on mobility and environmental features. Spatial integration supports both buffer-radius and nearest-K metro-to-bike join methods, while temporal alignment supports 15-minute/hour/day granularity with rolling windows. When station-level live flows are missing, the system derives a proxy from nearby bike-rental deltas. ## Backend and Frontend FastAPI exposes REST and Server-Sent Events, with endpoints for station time series, nearby bikes, similar stations, and an analytics overview, supporting both demo (no credentials) and real (reads from Silver) modes. The front end is a multi-page, briefing-style dashboard (home, insights, explorer, ops, about) rendered with Leaflet maps and Chart.js, showing data freshness and a build code in the header. ## Engineering Quality The project features config-driven design, Silver data-quality contract validation, Docker long-run deployment (with SSE heartbeats to prevent proxy disconnects), a pytest suite, and Playwright UI smoke tests with automatic screenshots, reflecting a reproducibility-first design with clear separation of ingestion, processing, and analysis.
My role
Solo developer: full-stack design and implementation of the data pipeline, backend API, analytics methods, and front-end dashboard
Problem
Metro and shared-bike usage is strongly shaped by urban structure, accessibility, and time-of-day behavior, yet the relevant data is scattered across open platforms at inconsistent spatial and temporal granularities, making it hard to assemble into reproducible, verifiable evidence for urban and transport decisions.
Solution

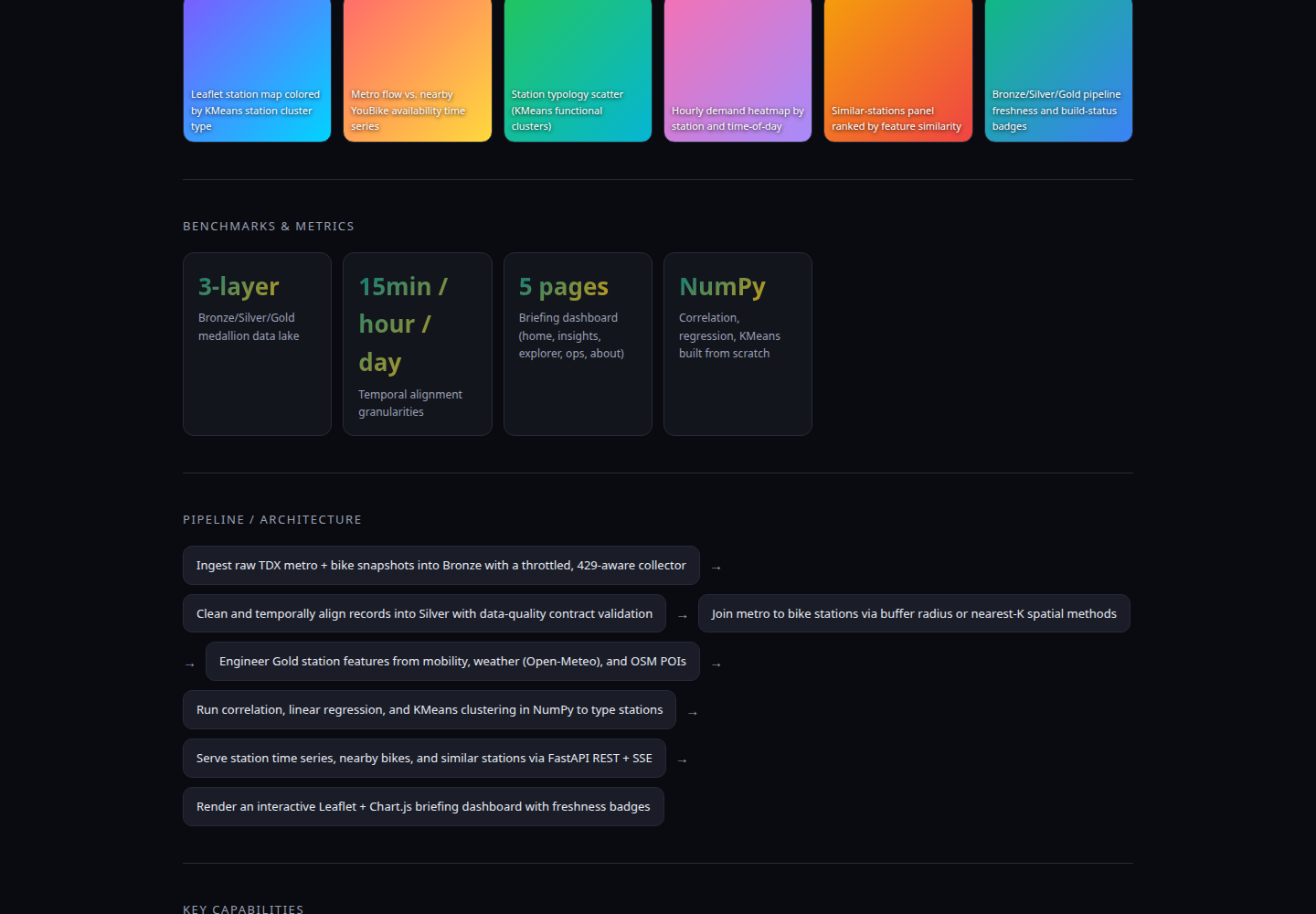

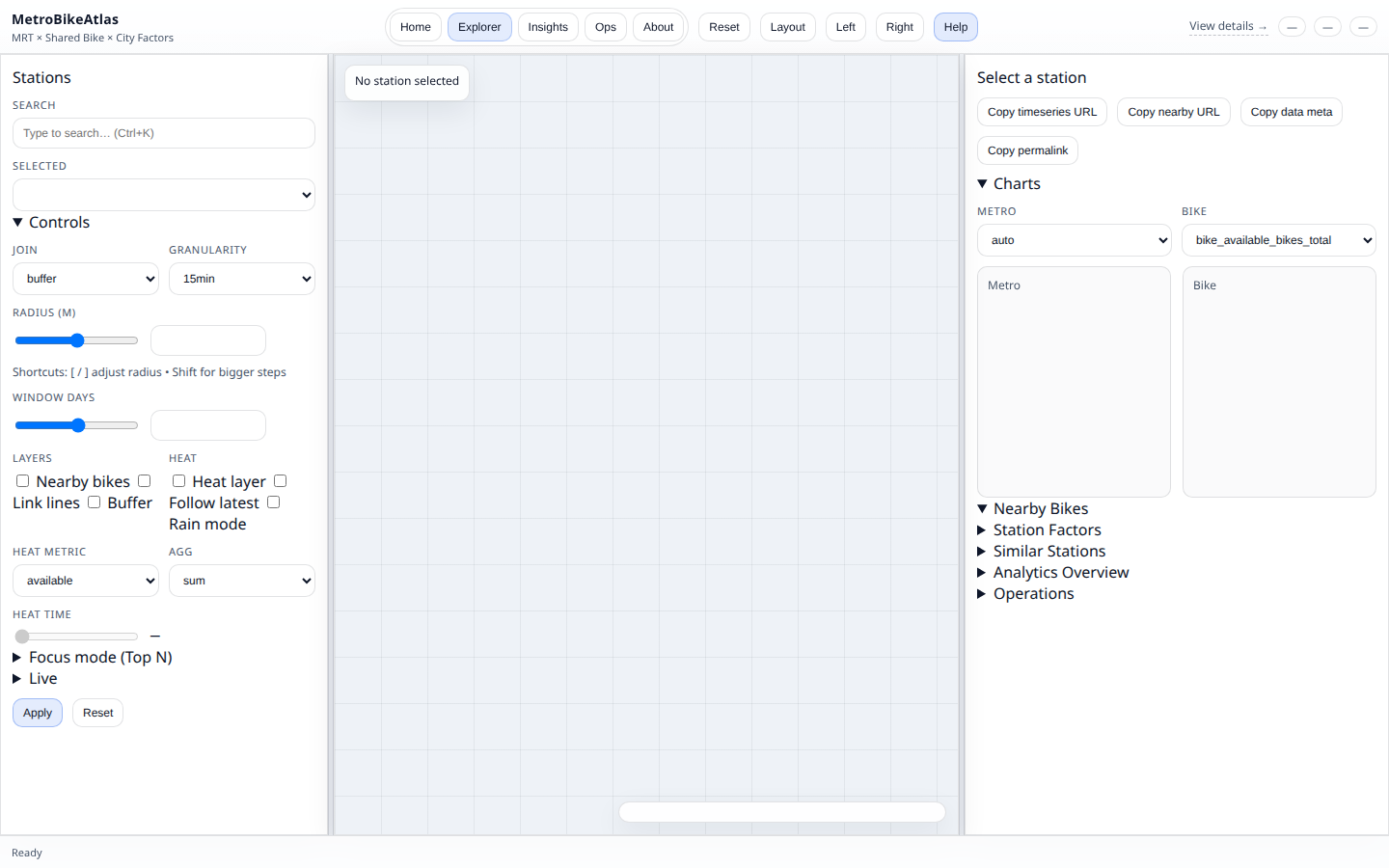

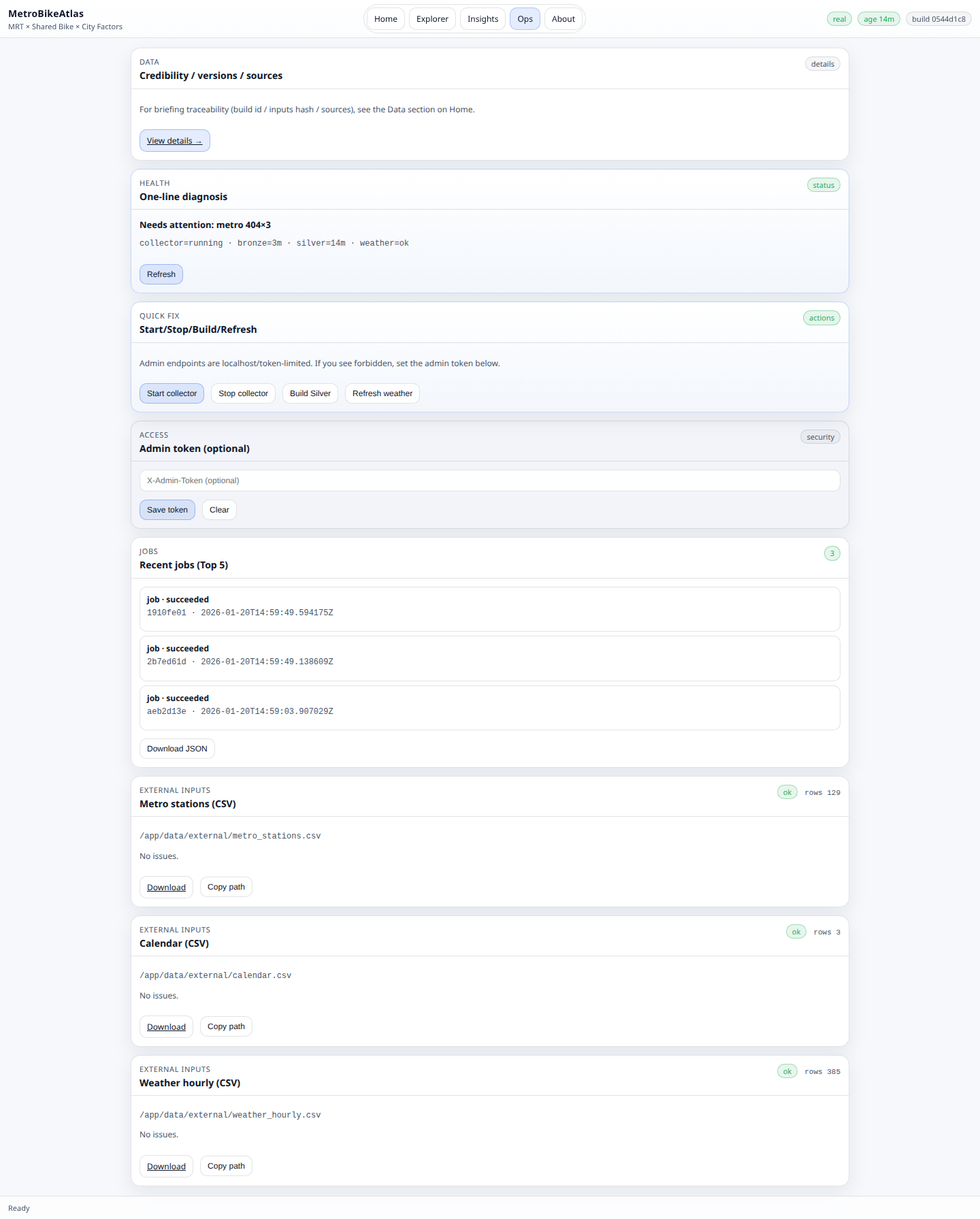

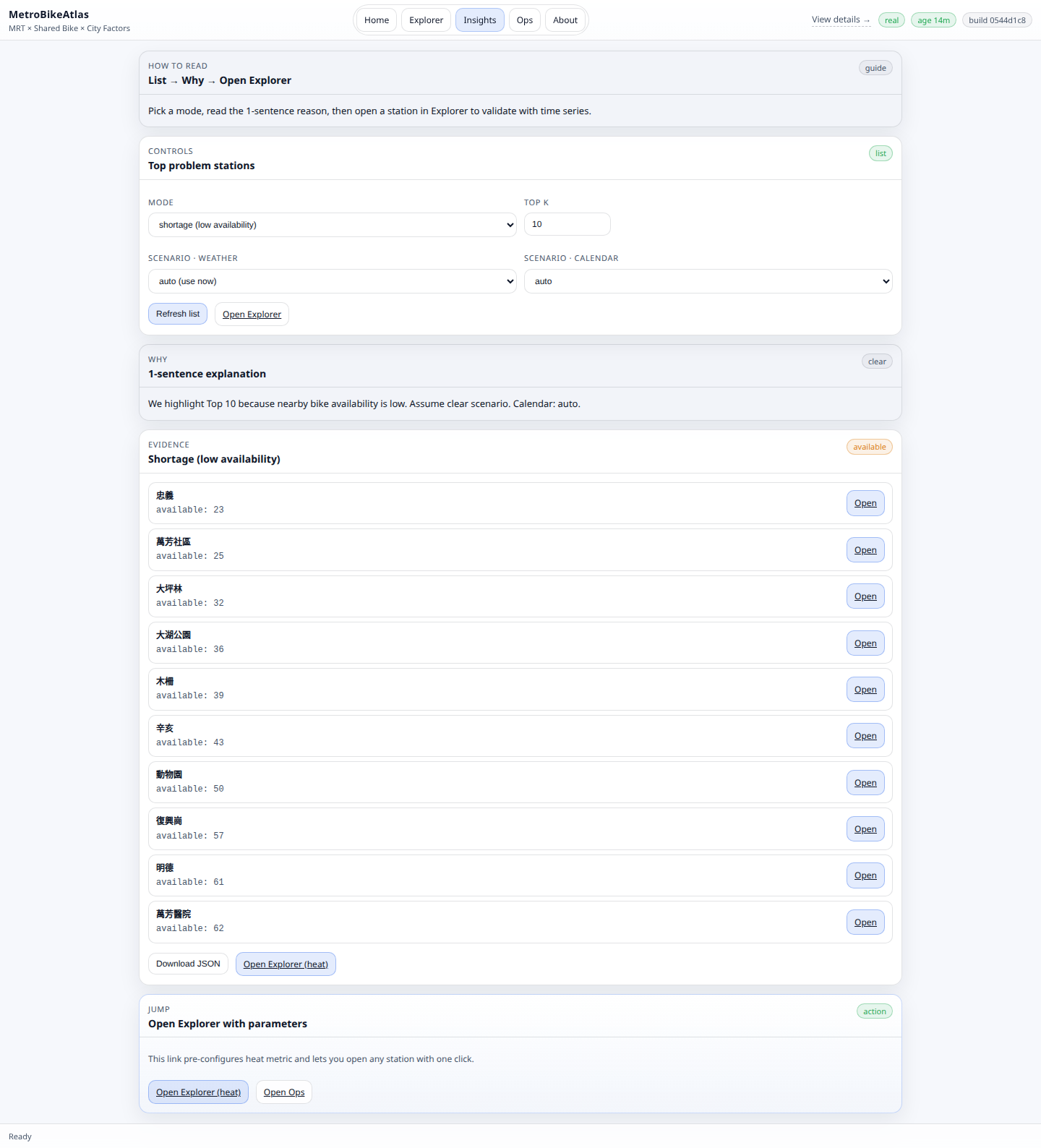

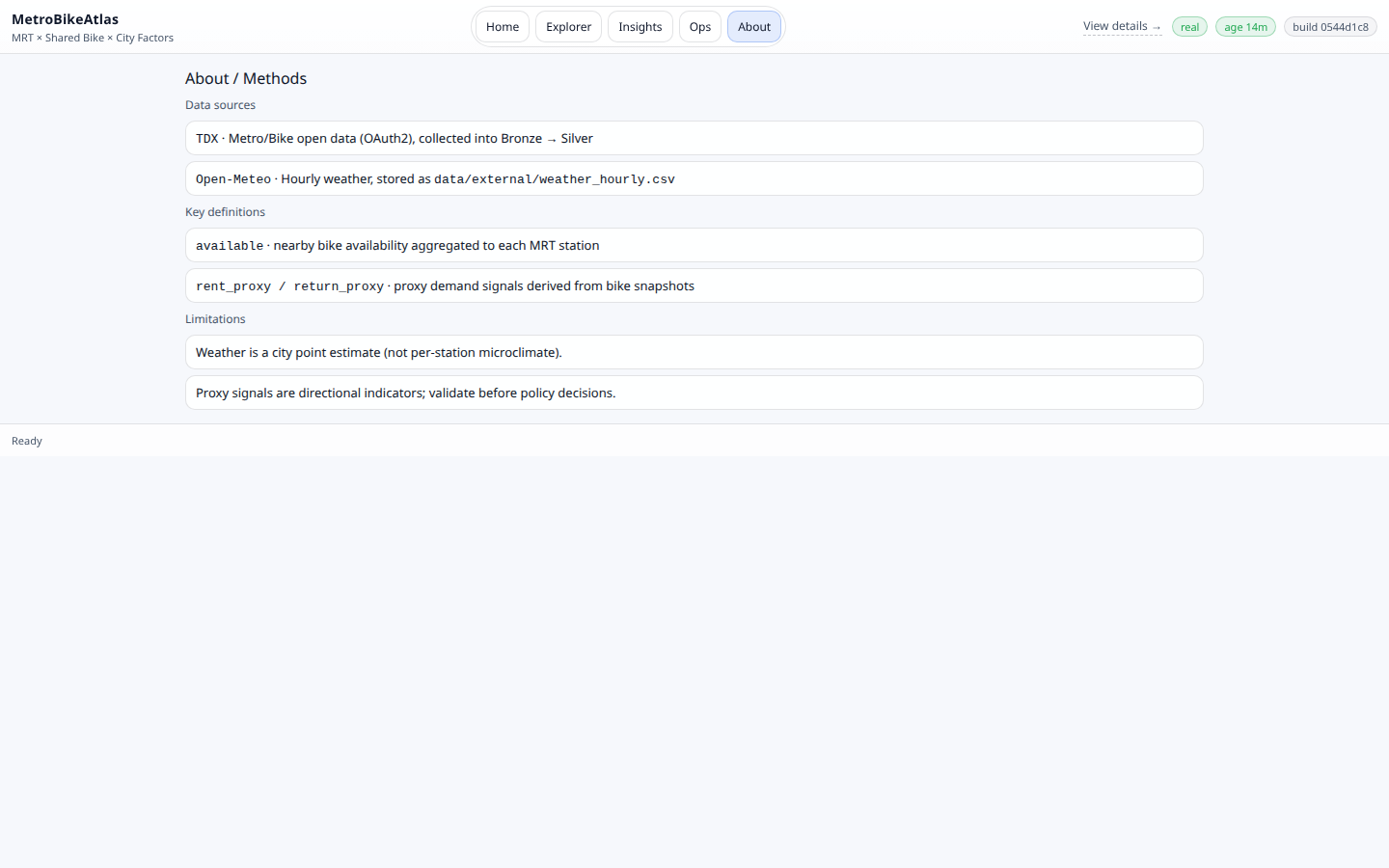

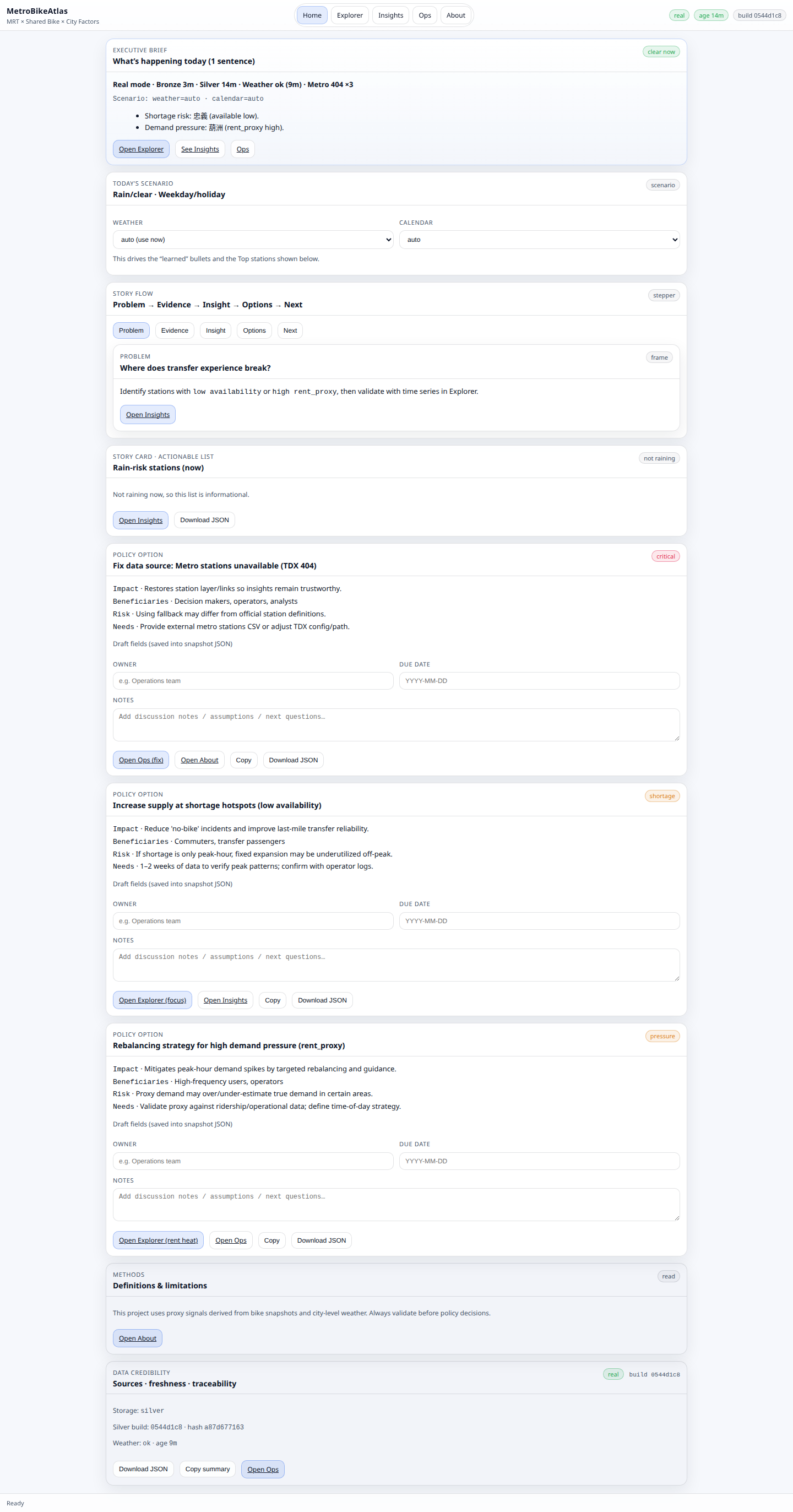

Built a config-driven, reproducible layered data lake (Bronze raw snapshots, Silver cleaned and aligned, Gold features and analytics). A throttled, 429-aware TDX client continuously collects live bike data into time series, and metro-to-bike spatial links are formed via buffer-radius or nearest-K methods. The analytics layer implements correlation, linear regression, KMeans clustering, and station similarity from scratch in NumPy to classify metro stations into functional types. A FastAPI backend exposes REST and SSE, paired with a multi-page, briefing-style Leaflet/Chart.js dashboard (home, insights, explorer, ops, about).
Current outcome
Delivered a one-command Bronze→Silver→Gold pipeline, Docker long-run deployment with SSE heartbeats to avoid proxy disconnects, Silver data-quality contract validation, and Playwright UI smoke tests with screenshots; APIs cover station time series, nearby bikes, and similar stations, supporting both demo and real data modes.
Highlights
- Bronze/Silver/Gold medallion data lake, config-driven and reproducible
- Continuous TDX collector with throttling and 429 backoff turns live bike data into time series
- Hand-rolled NumPy correlation, linear regression, KMeans, and station similarity for station typology
- Metro-to-bike spatial join via buffer radius or nearest-K, with temporal alignment

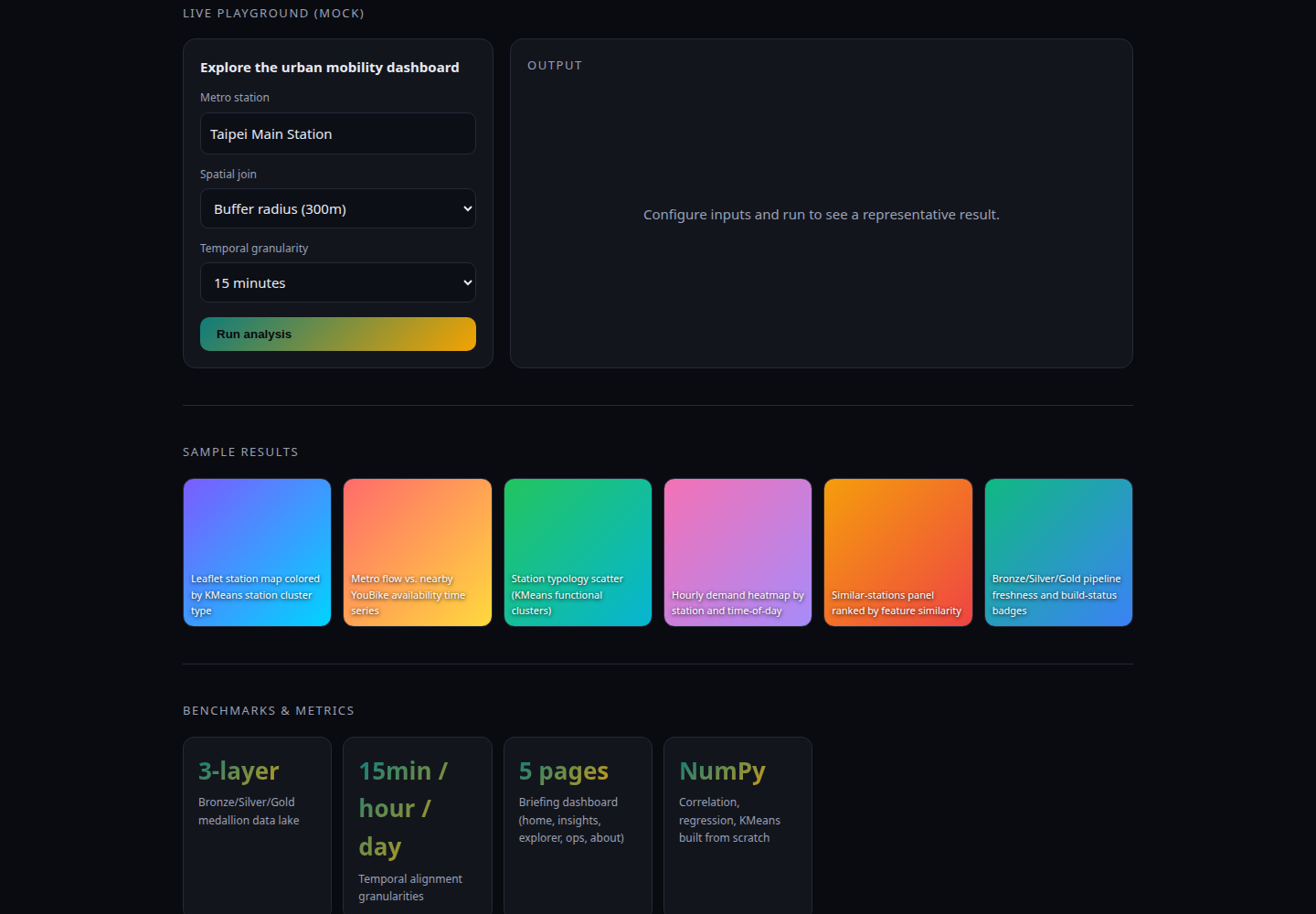

- FastAPI + Leaflet/Chart.js multi-page briefing dashboard with demo/real modes and freshness badges
- Docker long-run, SSE heartbeats, data-quality contracts, and Playwright smoke tests with auto screenshots
Engineering challenges
- Deriving a ridership proxy from nearby bike-rental deltas when station-level live flows are unavailable
- Unifying inconsistent spatial/temporal granularity across TDX, Open-Meteo, and OSM Overpass
- Keeping SSE connections stable behind reverse proxies/Docker via proxy headers and heartbeats
Target users
- Portfolio reviewers and interviewers
- Technical readers who need a quick view of purpose, stack, and maturity
Technical highlights

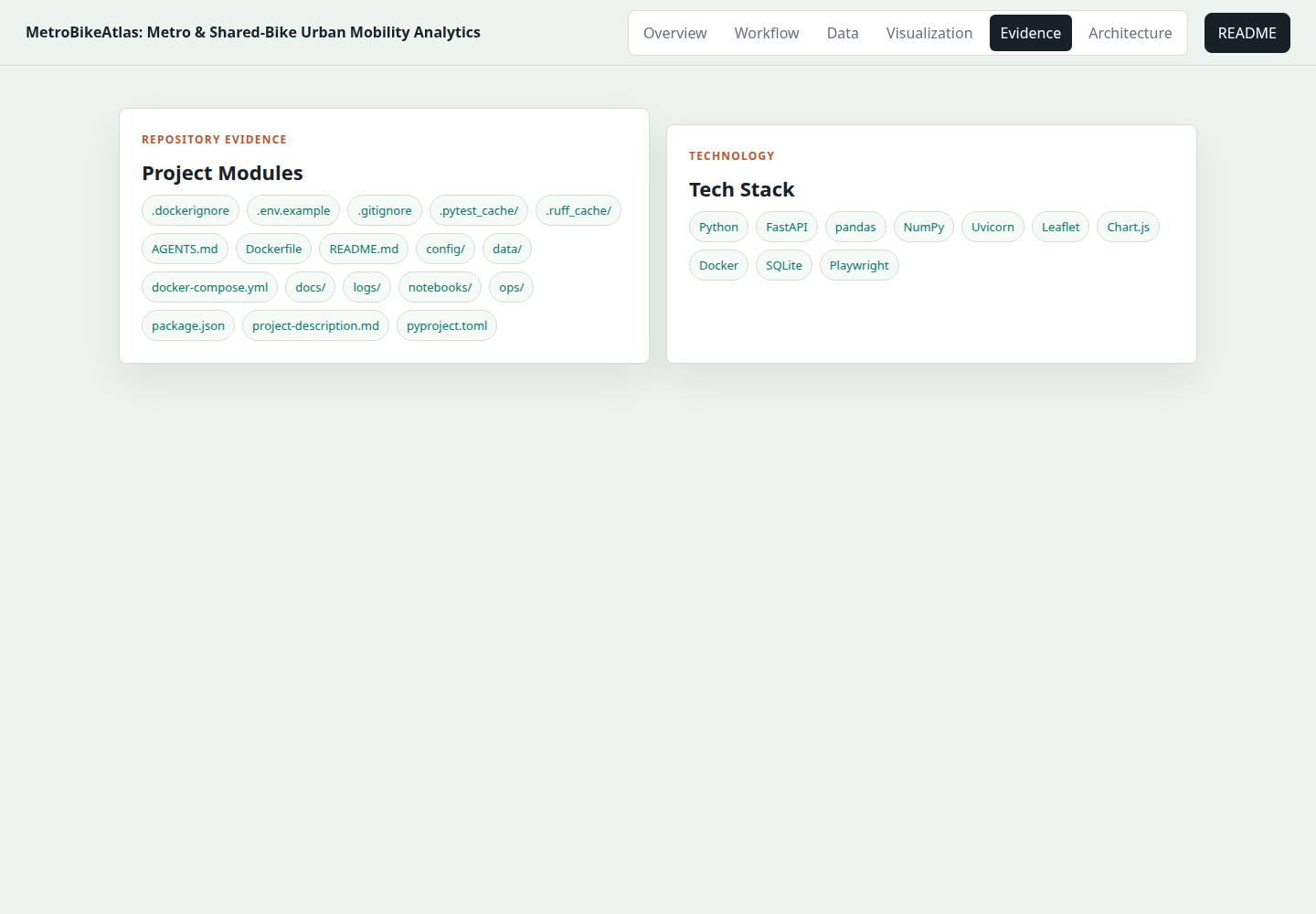

- Detected technical signals: Python, FastAPI, pandas, NumPy, Uvicorn, Leaflet, Chart.js, Docker, SQLite, Playwright
- README evidence exists and can support a fuller reviewed case study
- A public GitHub repository is linked for source traceability
Architecture

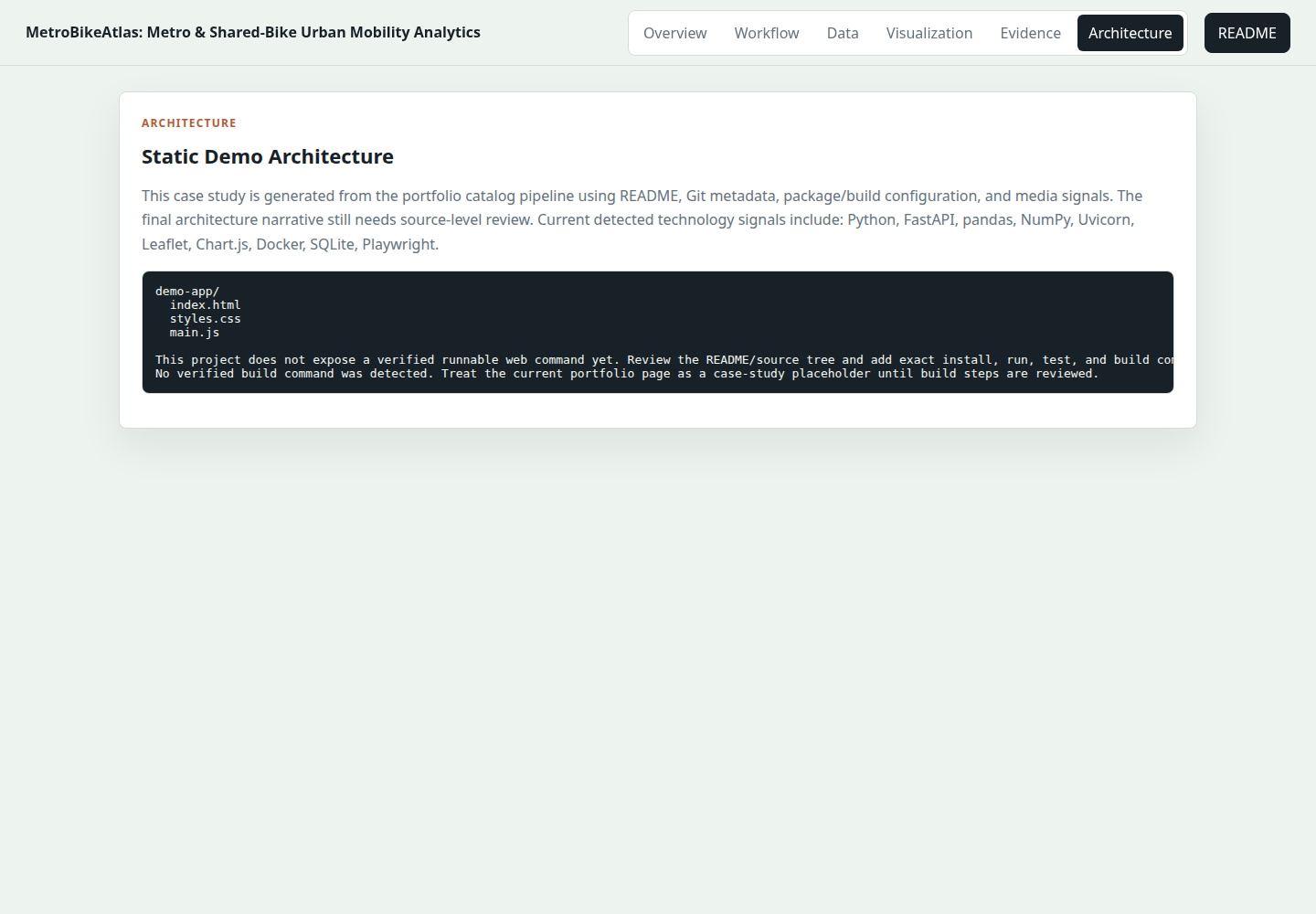

This case study is generated from the portfolio catalog pipeline using README, Git metadata, package/build configuration, and media signals. The final architecture narrative still needs source-level review. Current detected technology signals include: Python, FastAPI, pandas, NumPy, Uvicorn, Leaflet, Chart.js, Docker, SQLite, Playwright.
Data flow
A public data-flow narrative is not fully reviewed yet. If the project includes data processing, AI pipelines, or backend APIs, the next pass should document input, processing, storage, and UI/output flow end to end.
Project structure
mrt-ubike-analysis/ README.md # project documentation, when available source files # implementation reviewed by local audit package/build config # detected capability signals
Setup / Run guide
This project does not expose a verified runnable web command yet. Review the README/source tree and add exact install, run, test, and build commands before interview use. No verified build command was detected. Treat the current portfolio page as a case-study placeholder until build steps are reviewed.
Future improvements
- Complete the production-quality README, screenshots, and demo recording
- Add architecture diagrams, data-flow notes, and key technical decisions
- Verify build/test status and update the portfolio release report
Interview notes
- State the current maturity and demonstrable scope first
- Focus on verified stack, source structure, and completed behavior
- Do not claim unverified deployment, video, or test coverage as finished
Next steps
- Add policy simulation (e.g., placing new YouBike stations) and multi-city comparison
- Integrate census and socioeconomic data to strengthen urban-factor analysis
- Extend time-series decomposition and richer ridership models
