urban-analytics-core
Shared infrastructure package extracted from five Taiwan urban-analytics projects
Consolidates duplicated infrastructure code from five Taiwan urban-analytics projects (traffic congestion, metro/YouBike mobility, destination scoring, commute reliability, library accessibility) into a single installable Python package. Provides a unified TDX OAuth client with rate-limited/retrying HTTP, Pydantic settings loading, logging, TTL caching, SQLite/DuckDB storage backends, a FastAPI app factory, and geo/time utilities — eliminating cross-project reimplementation.
Verified Demo Recording 1
Copied by the portfolio quality pass from existing project demo media.

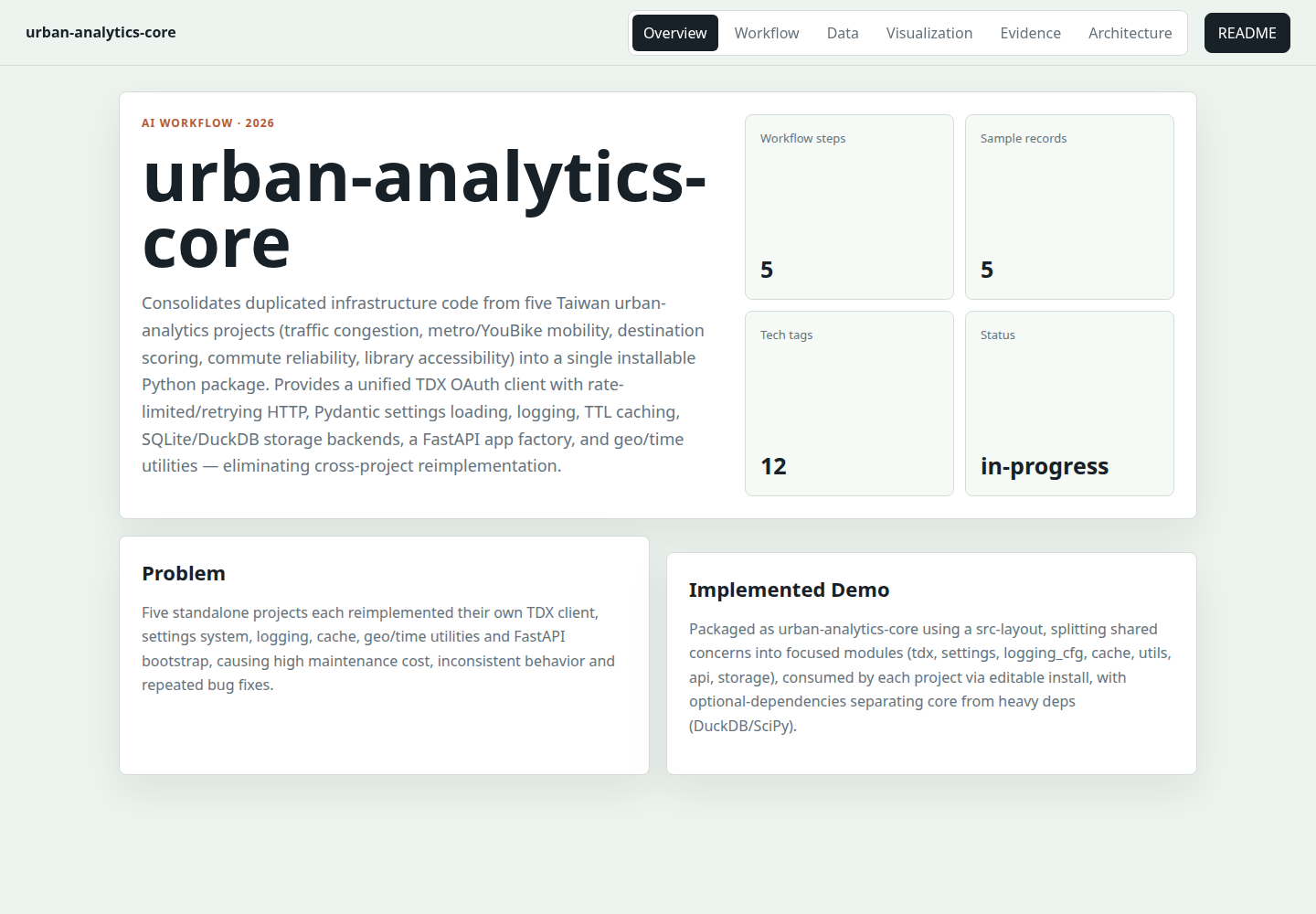

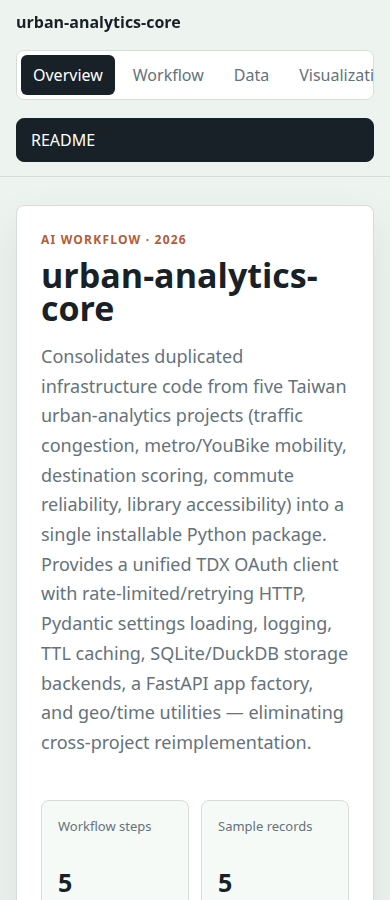

Media overview
Browse the project screenshots and recorded walkthroughs.

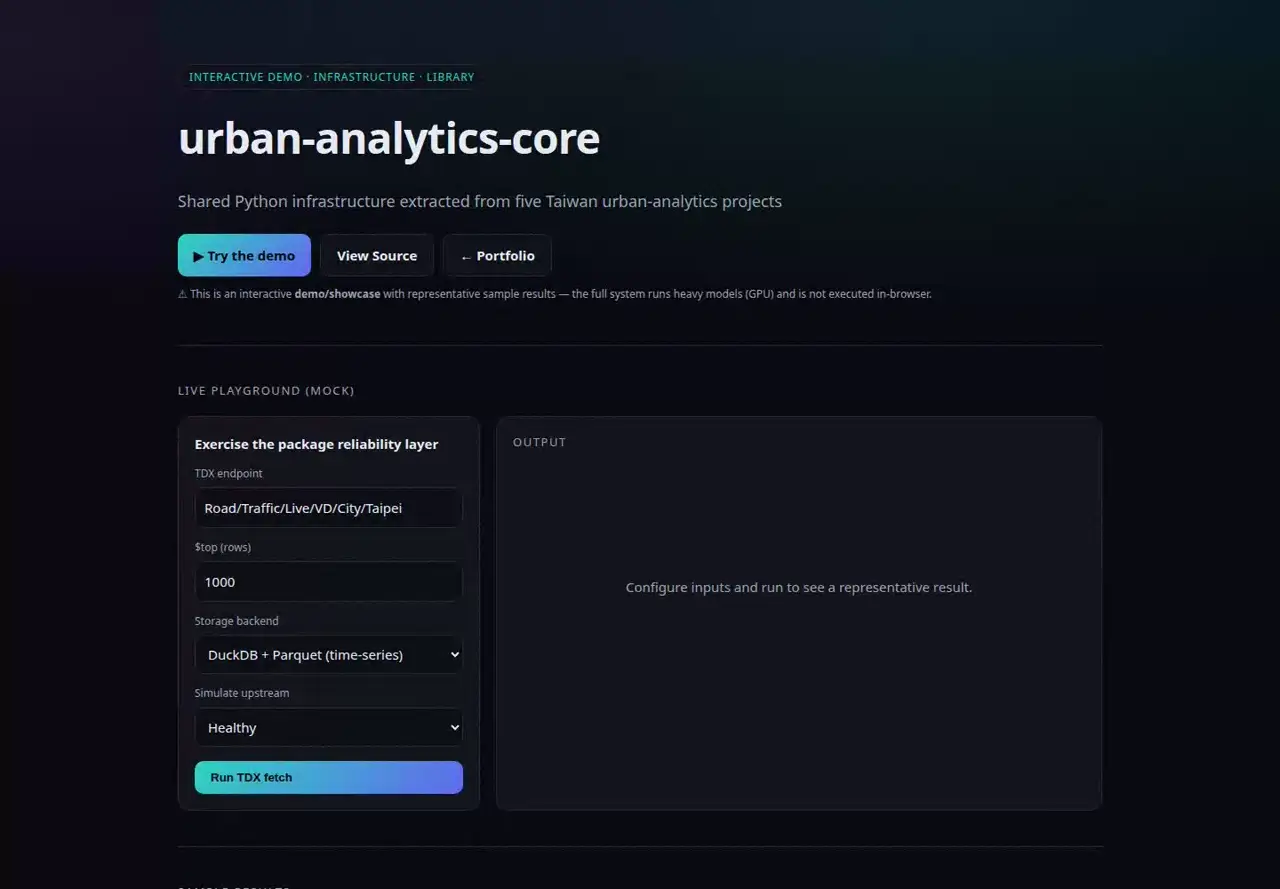

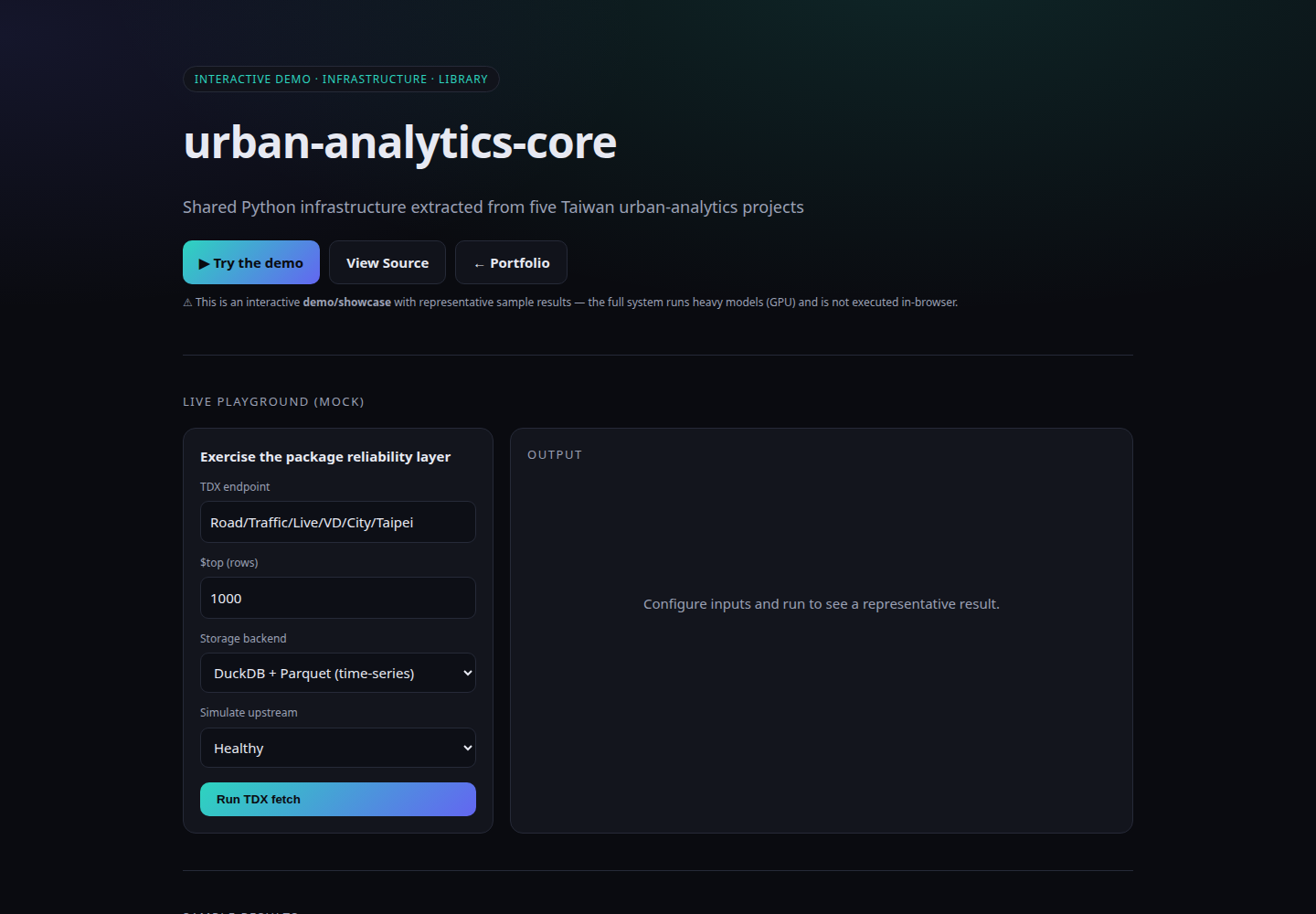

Project links and demo readiness
live
Live Demo
Open the verified live demo when available, or use the internal run guide for manual demo preparation.
github
View Source
Open the public repository when available, or review the source-access status captured by this case study.
video
Demo Recording
Open the demo recording when available, or use this section as the recording checklist for the project.
documentation
Read README
Open the project README when available, or use this case study as the documentation baseline.
Project overview
## Overview `urban-analytics-core` is a shared-infrastructure Python package created by extracting duplicated code from five Taiwan urban-analytics projects (`traffic-pulse` road congestion, `mrt-ubike-analysis` metro/YouBike, `tripscore` destination scoring, `commute-reliability-analysis` commute reliability, `library-reach-analysis` library accessibility). The goal is a single source of truth that eliminates cross-project duplication. ## Technical Design The package uses a src-layout with setuptools. Core dependencies are Pydantic v2, httpx, FastAPI/Starlette/Uvicorn and pandas/numpy, with heavier libraries like DuckDB and SciPy gated behind `optional-dependencies`. Code is split by concern into `tdx` (auth + client), `settings`, `logging_cfg`, `cache`, `utils`, `api` and `storage`. ## Reliability The TDX integration hardens against an unreliable upstream API with in-memory token caching plus safety-margin auto-refresh, exponential backoff with random jitter, 429 `Retry-After` parsing, forced token refresh on 401, and a configurable minimum request interval — keeping bulk ingestion stable. ## Data and Service Layer The storage layer offers SQLite (WAL mode, for reference data and run metadata) and DuckDB+Parquet (for large time-series observations and analytic queries). The API layer ships a standardized FastAPI factory with health check, CORS, TTL response cache and per-IP sliding-window rate limiting, and can mount a static frontend. ## Status Currently version 0.1.0, a personal project consumed via editable install. A ruff + pytest toolchain is configured; next work centers on tests, CI and downstream migration.
My role
Solo developer: architecture, module extraction and consolidation, packaging
Problem
Five standalone projects each reimplemented their own TDX client, settings system, logging, cache, geo/time utilities and FastAPI bootstrap, causing high maintenance cost, inconsistent behavior and repeated bug fixes.
Solution
Packaged as urban-analytics-core using a src-layout, splitting shared concerns into focused modules (tdx, settings, logging_cfg, cache, utils, api, storage), consumed by each project via editable install, with optional-dependencies separating core from heavy deps (DuckDB/SciPy).
Current outcome
Five TDX clients collapse into one; five settings/logging systems and three cache and geo/time utilities converge to a single source of truth — with reliability built in: auto token refresh, exponential backoff with jitter, Retry-After handling and forced refresh on 401.
Highlights
- TDX OAuth2 client-credentials auth with in-memory token caching and safety-margin auto-refresh
- HTTP client with exponential backoff + jitter retries, 429 Retry-After parsing and minimum request-interval throttling
- Layered config: Pydantic v2 settings with YAML deep-merge and environment-variable overrides
- FastAPI app factory with built-in CORS, TTL response cache and per-IP sliding-window rate-limit middleware
- Dual storage backends: SQLite (WAL mode) for reference/metadata, DuckDB+Parquet for large time-series analytics
- Lightweight geo helpers (haversine) with no GIS dependency and Asia/Taipei timezone normalization
Engineering challenges
- Reconciling inconsistent interfaces and behavior across five existing projects into abstractions usable by all of them
- Isolating heavy dependencies (DuckDB/SciPy) behind optional-dependencies so lightweight consumers avoid the install burden
Target users
- Portfolio reviewers and interviewers
- Technical readers who need a quick view of purpose, stack, and maturity

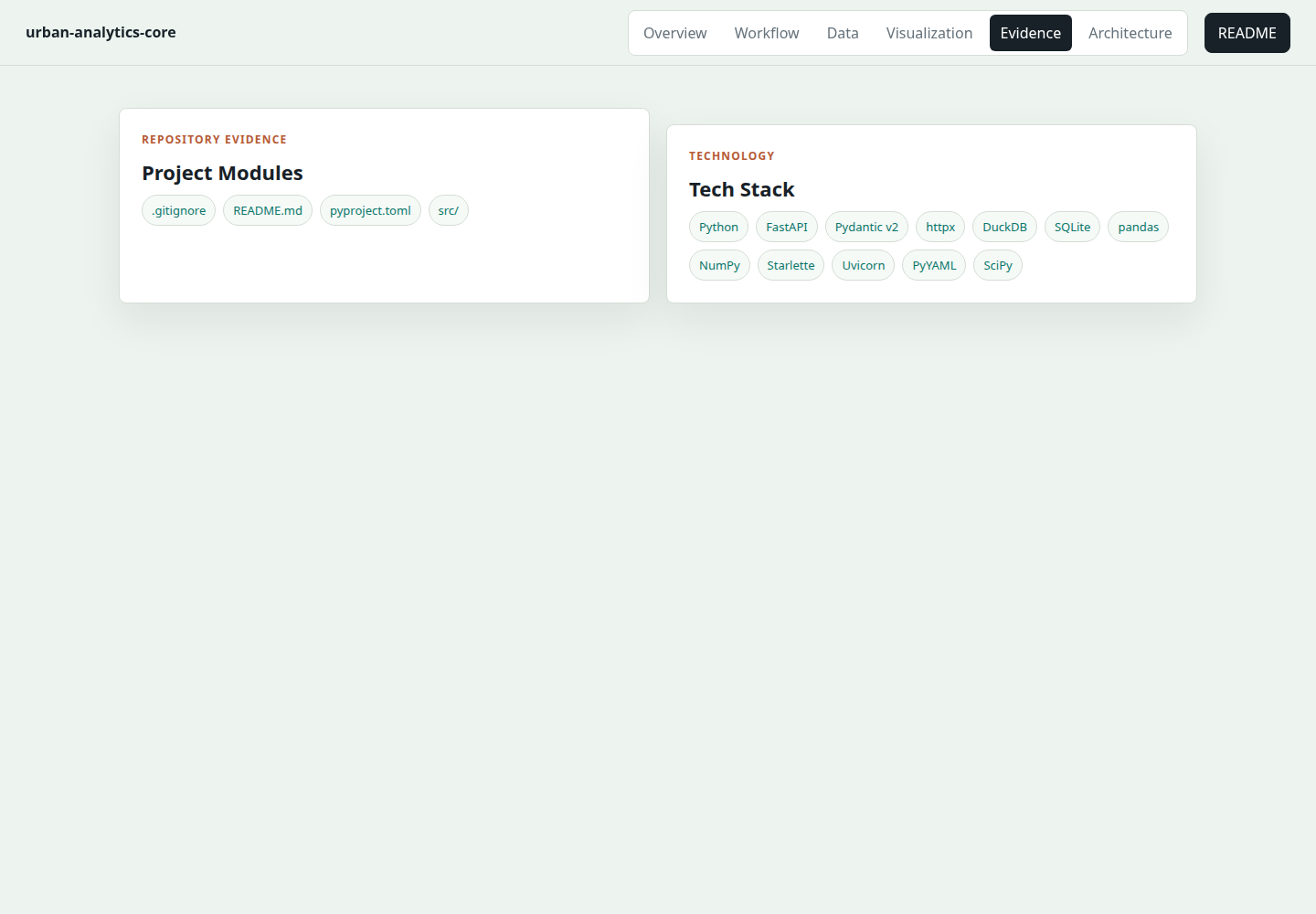

Technical highlights
- Detected technical signals: Python, FastAPI, Pydantic v2, httpx, DuckDB, SQLite, pandas, NumPy, Starlette, Uvicorn, PyYAML, SciPy
- README evidence exists and can support a fuller reviewed case study
- A public GitHub repository is not verified yet; the portfolio marks it as pending

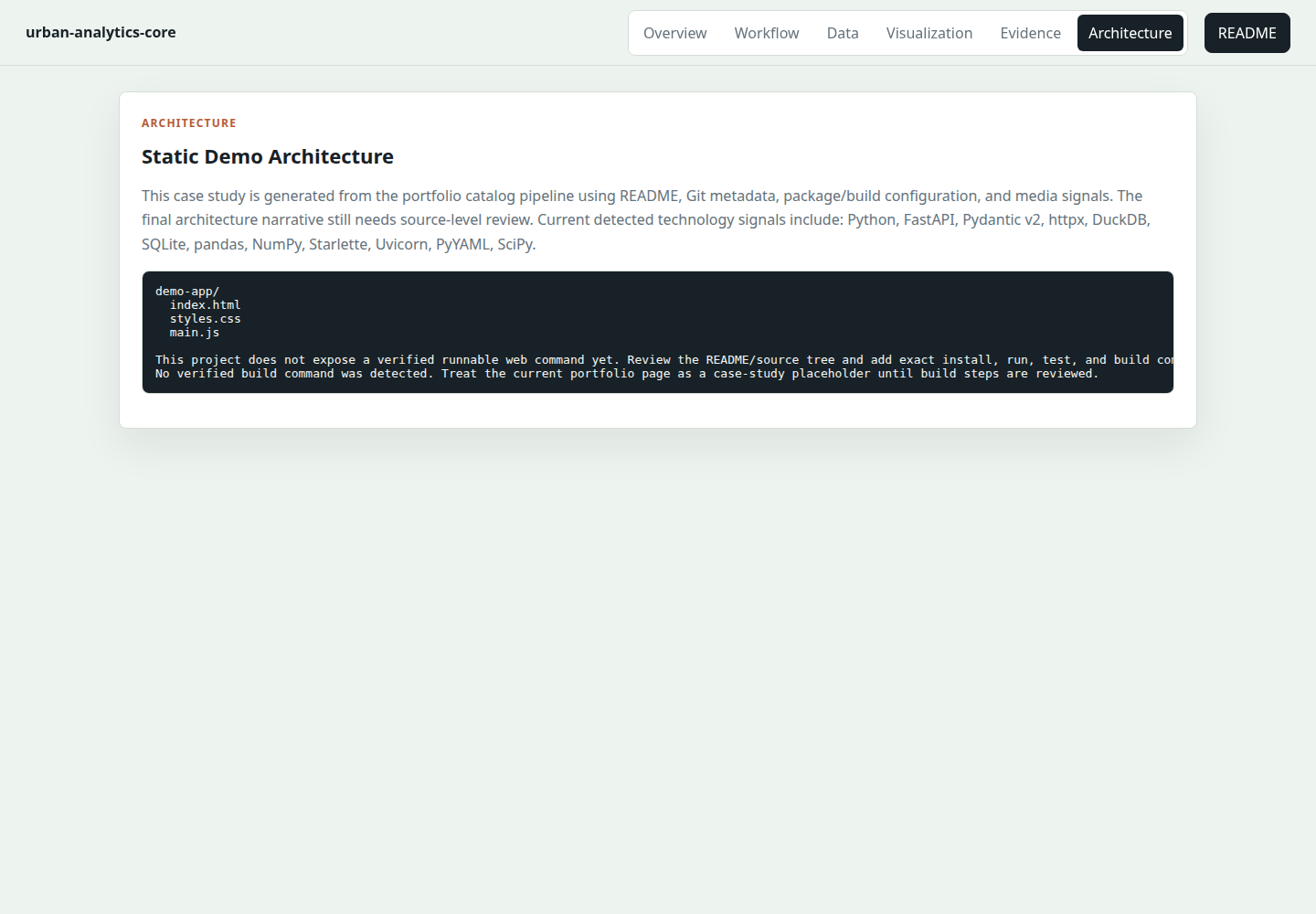

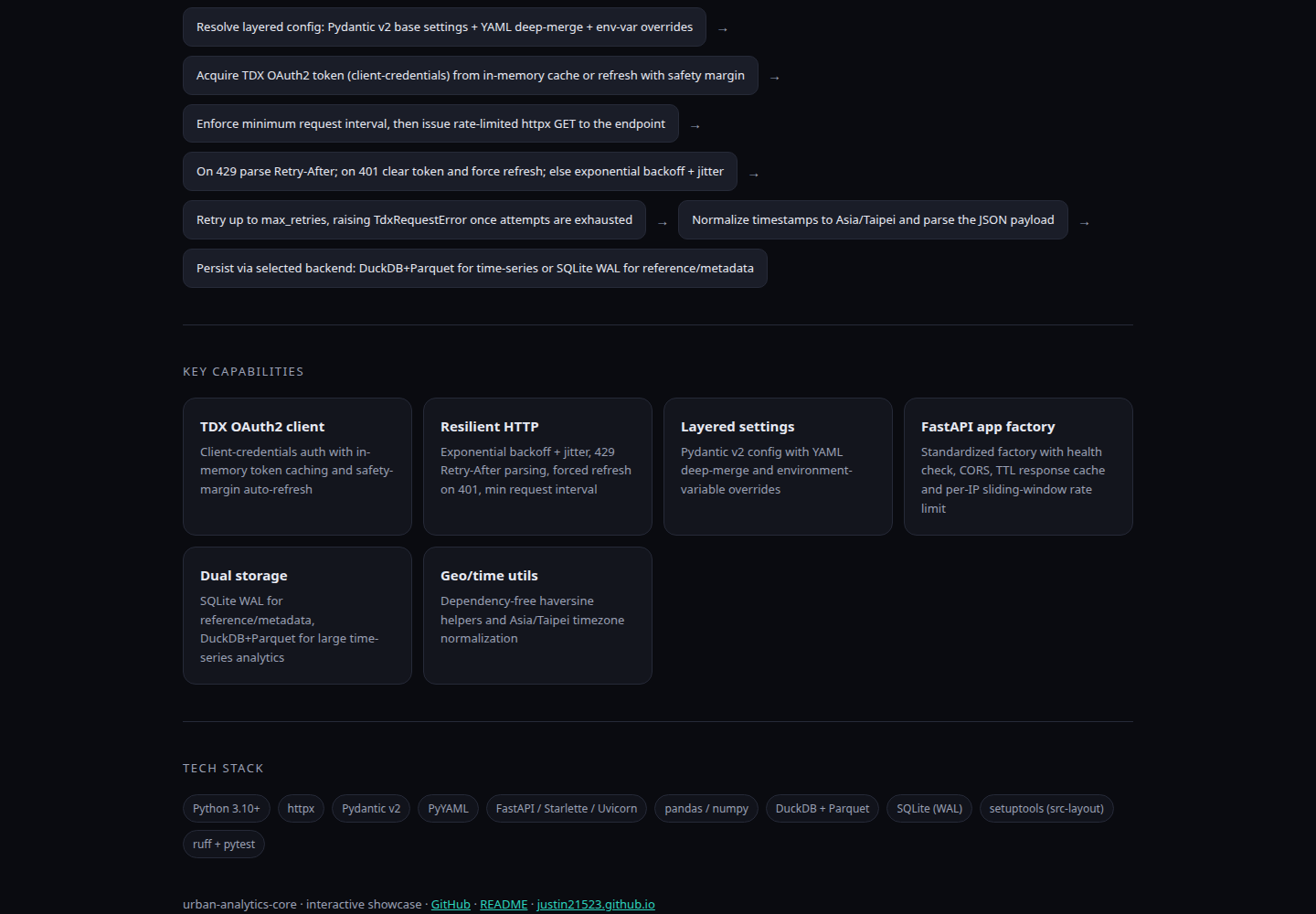

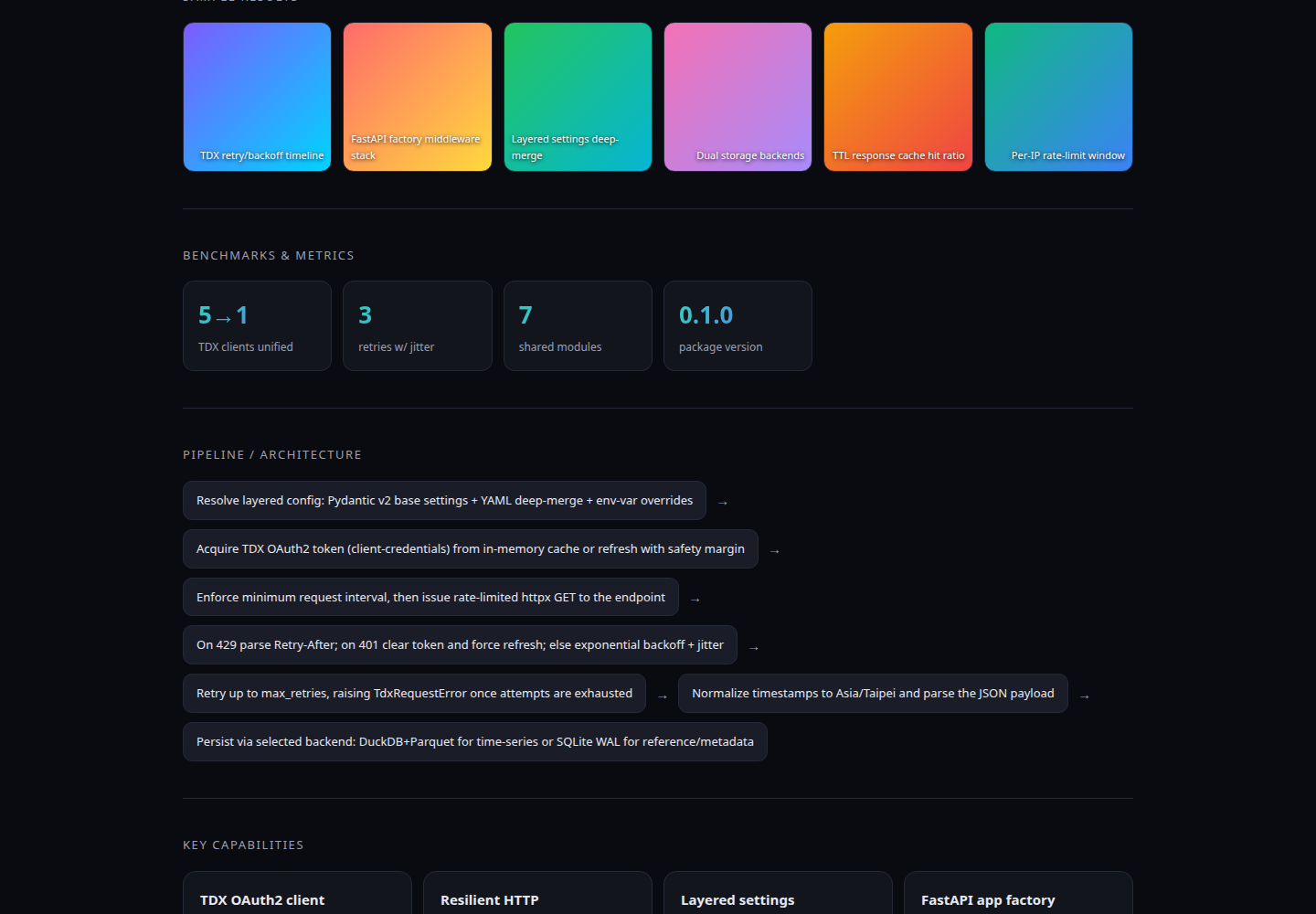

Architecture
This case study is generated from the portfolio catalog pipeline using README, Git metadata, package/build configuration, and media signals. The final architecture narrative still needs source-level review. Current detected technology signals include: Python, FastAPI, Pydantic v2, httpx, DuckDB, SQLite, pandas, NumPy, Starlette, Uvicorn, PyYAML, SciPy.
Data flow
A public data-flow narrative is not fully reviewed yet. If the project includes data processing, AI pipelines, or backend APIs, the next pass should document input, processing, storage, and UI/output flow end to end.
Project structure
urban-analytics-core/ README.md # project documentation, when available source files # implementation reviewed by local audit package/build config # detected capability signals
Setup / Run guide
This project does not expose a verified runnable web command yet. Review the README/source tree and add exact install, run, test, and build commands before interview use. No verified build command was detected. Treat the current portfolio page as a case-study placeholder until build steps are reviewed.
Future improvements
- Complete the production-quality README, screenshots, and demo recording
- Add architecture diagrams, data-flow notes, and key technical decisions
- Verify build/test status and update the portfolio release report
Interview notes
- State the current maturity and demonstrable scope first
- Focus on verified stack, source structure, and completed behavior
- Do not claim unverified deployment, video, or test coverage as finished
Next steps
- Build out test coverage (pytest/pytest-asyncio already configured) and add CI
- Publish as a versioned internal package and migrate the five downstream projects to consume it
